The TL Series amps are designed to increase the power of internal systems, maintaining the original sound in each configuration while increasing performance.
Technical Specs
Number of Channels: 03

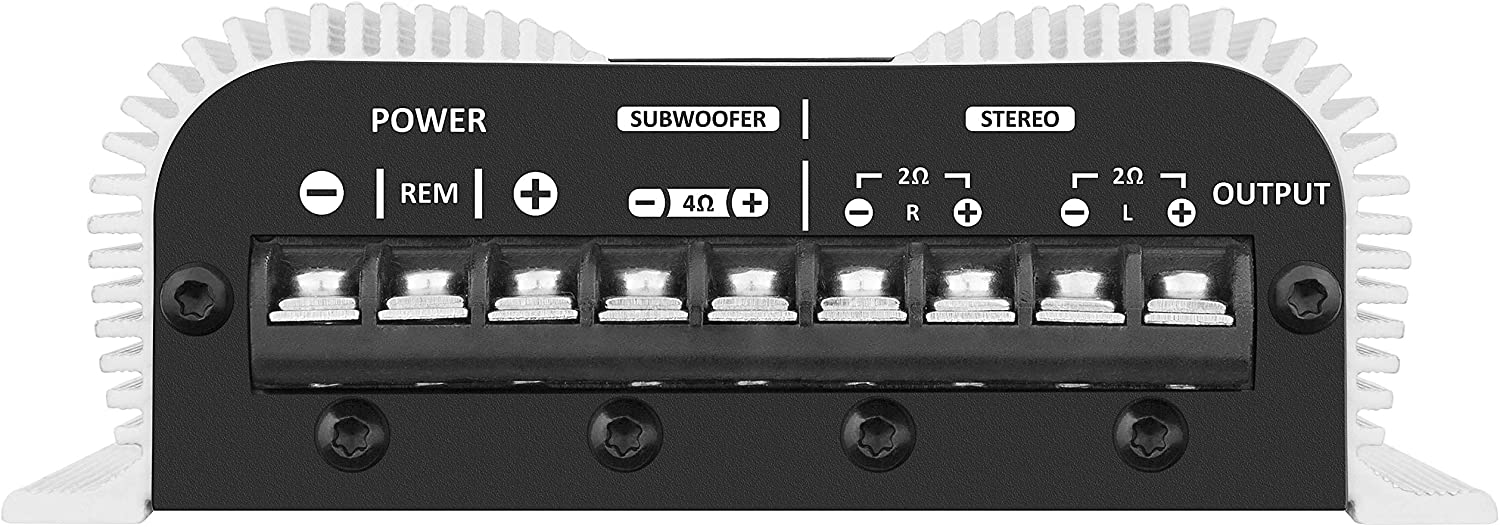

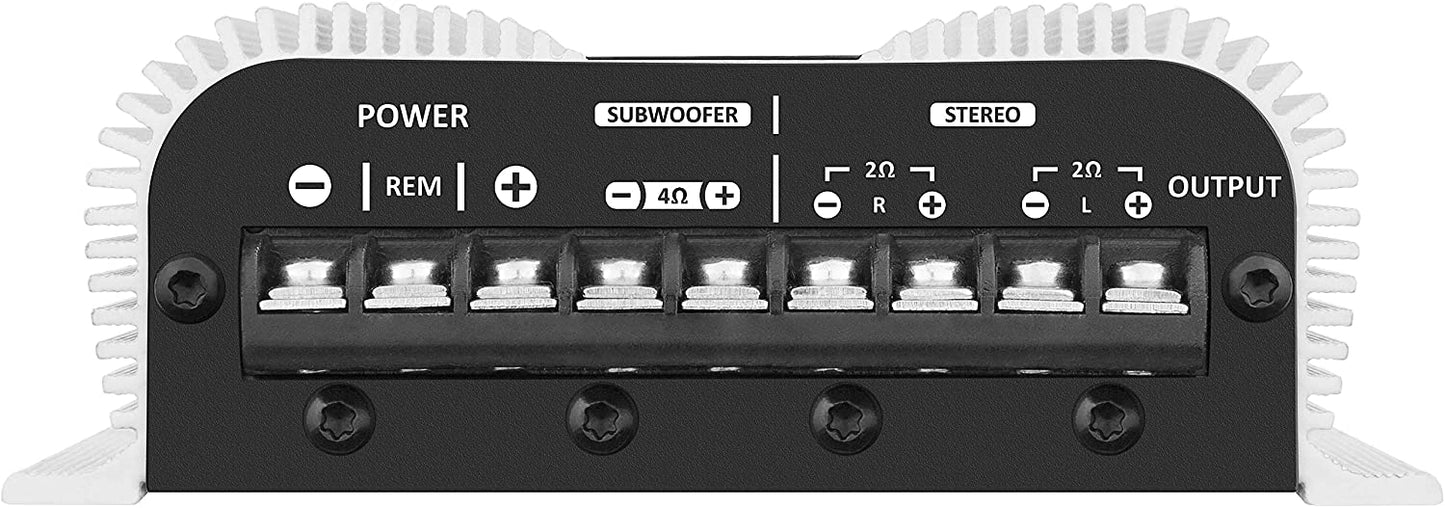

Maximum Power: @ 13.8 VDC - 1 x 200W RMS (SUB 4 OHMS) - + 2 x 95W RMS (STEREO 2 OHMS)
Input Sensitivity RCA Input=320mV
Wire Input=6V
Frequency Response:
- Sub Output: 15Hz to 90Hz with active frequency cut (12dB / 8th)
- Stereo L / R outputs: 90Hz to 30kHz with active frequency cut-off (12dB / 8th)

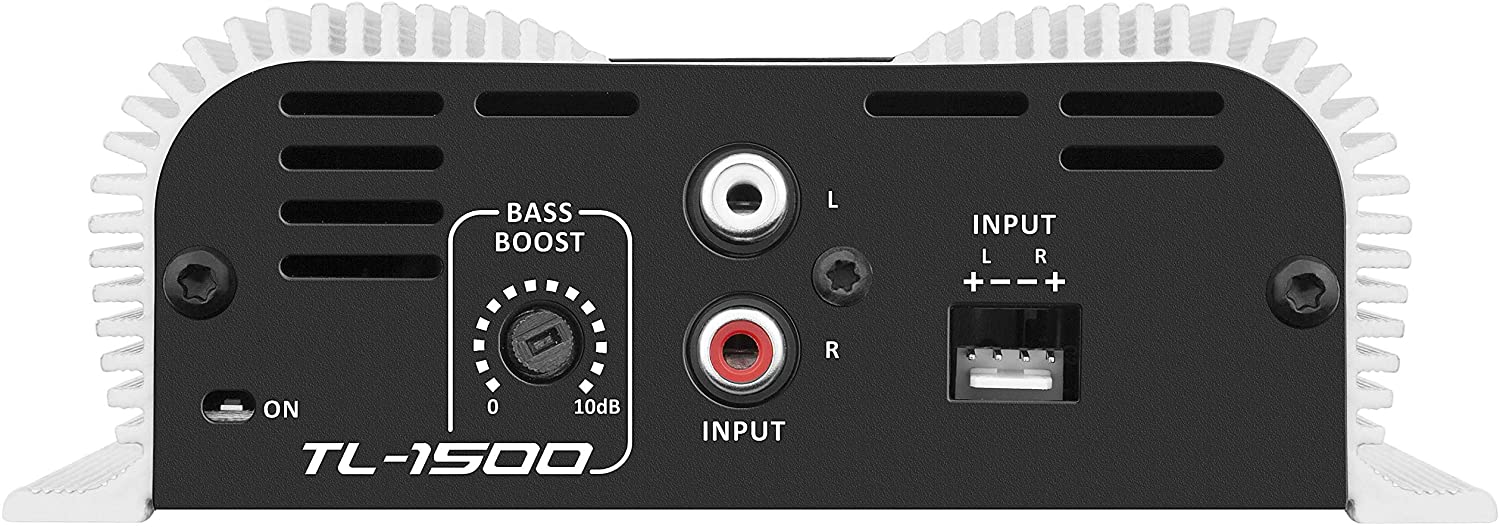

Bass Boost: Adjustable from 0 to 10dB @ 50Hz
Output Stage Efficiency: > 90%
Input Impedance:
- 22K OHMS (RCA)
- 1K OHMS (Wire)
Thermal Protection System and Short Output
Minimum Supply Voltage: 9 VDC
Maximum Supply Voltage: 16 VDC
Consumption at Rest: 1 Amp.
Maximum Musical Power: @ 13.8VDC: 17.5 Amp.
Maximum Sine Signal Consumption: (1kHz) 13.8VDC: 35 Amp.
